How to Match Your Inverter with the Right Battery Capacity
Properly matching your inverter with a battery is crucial for a safe and efficient solar system. Using the Inverter to Battery Matching Calculator, you can determine the optimal battery capacity required to power your devices for the desired runtime. This ensures your inverter operates safely, avoids overloading, and prevents excessive battery discharge that can reduce battery lifespan.
Understanding Inverter and Battery Compatibility

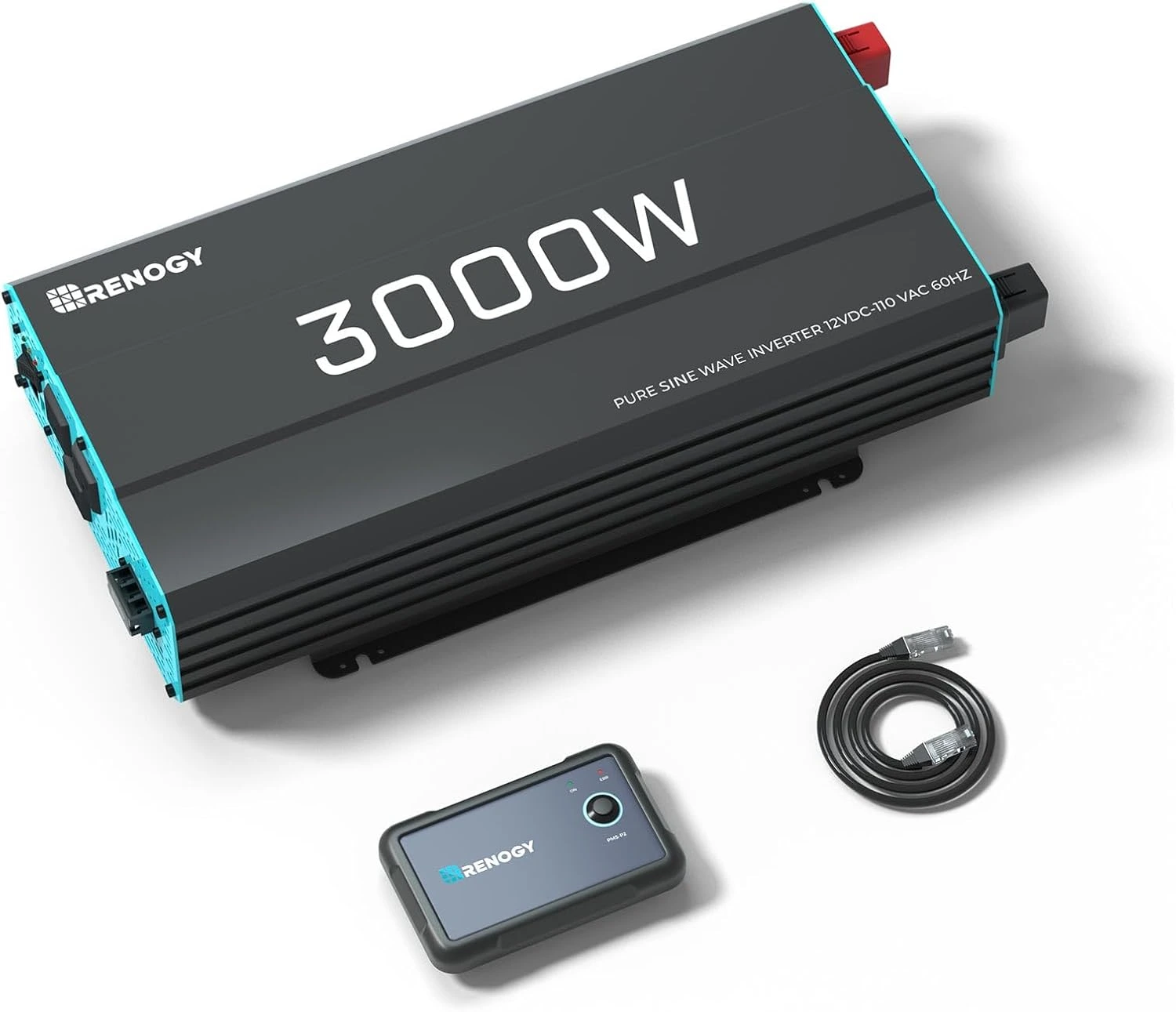

An inverter converts DC power stored in batteries into AC power for household appliances. To prevent damage, the inverter's voltage rating must align with your battery bank voltage, and the battery must supply sufficient current for the inverter’s power rating. Using a battery with insufficient capacity can cause voltage drops, overheating, or shortened inverter and battery life.
Factors Affecting Battery Sizing for Your Inverter
- Inverter Power Rating: The total wattage your inverter can handle determines the minimum current the battery must supply.
- Battery Voltage: Lower-voltage systems draw higher currents, which may require thicker cables to handle safely.
- Desired Runtime: Longer runtime requires a larger battery capacity to sustain the load.
- Inverter Efficiency: No inverter is 100% efficient. Efficiency losses increase the required battery capacity.
- Depth of Discharge (DoD): To extend battery lifespan, avoid fully discharging the battery. Lead-acid and LiFePO₄ batteries have different recommended DoD levels.
- Surge Loads: Appliances like refrigerators or pumps draw high surge currents. Batteries must handle these short-term spikes.
Step-by-Step Battery Sizing Calculation
The basic formula for estimating battery capacity is:
Battery Capacity (Ah) = (Inverter Power × Runtime) ÷ (Battery Voltage × Inverter Efficiency)
For example, a 1000 W inverter with 12 V batteries running for 2 hours at 90% efficiency requires approximately:
(1000 × 2) ÷ (12 × 0.9) ≈ 185 Ah
Always adjust this calculation for surge loads, allowable DoD, and future expansion to ensure reliability.
Practical Tips for Matching Batteries and Inverters
- Use batteries rated for continuous high current if your inverter draws significant power.
- Consider a higher-voltage inverter to reduce battery current draw and cable size.
- Plan for system growth by sizing the battery slightly larger than the minimum calculated capacity.
- Check the inverter’s surge current specification and ensure the battery can handle these peaks safely.
- For off-grid systems, prioritize deep-cycle batteries like LiFePO₄ or high-quality lead-acid types.
Frequently Asked Questions (FAQs)
1. Can I use a smaller battery than calculated?
Using a smaller battery will reduce runtime and may strain the battery and inverter. It is not recommended for continuous use.
2. How do I account for inverter surge loads?
Include a safety margin of 20–30% above the calculated capacity to handle surge currents from appliances like pumps, compressors, or motors.
3. What battery type is best for high-efficiency inverters?
Lithium-based batteries such as LiFePO₄ offer higher DoD, longer cycle life, and better efficiency compared to traditional lead-acid batteries.
4. How often should I check my inverter-battery match?
Regularly monitor voltage drops, battery temperature, and runtime. Adjust your battery capacity if you add more appliances or increase load requirements.
5. Does inverter efficiency affect battery size?
Yes, lower inverter efficiency increases the required battery capacity. Always factor in the efficiency percentage when sizing your battery bank.
Conclusion
Correctly matching your inverter and battery is essential for safety, efficiency, and long-term performance of your solar system. Our Inverter to Battery Matching Calculator simplifies this process, allowing you to quickly determine the ideal battery capacity, current draw, and safety recommendations. Always consider surge loads, DoD limits, and inverter efficiency to optimize your solar energy setup.
