Understanding Fuse Sizing for Solar and Electrical Circuits
Correct fuse sizing is one of the most critical aspects of protecting your solar or electrical system from short circuits, overloads, and equipment damage. A fuse acts as a sacrificial safety device — it’s designed to melt and open the circuit when current exceeds a safe threshold, preventing fires and equipment failure. The goal is to find the ideal balance: a fuse large enough to handle normal operation, but small enough to blow quickly during faults.
1. What Does a Fuse Do?
A fuse contains a thin wire or strip of metal that melts when excessive current flows through it. This breaks the circuit and stops current flow before the conductors or connected devices overheat. Unlike circuit breakers, fuses are one-time devices — once blown, they must be replaced. However, they offer precise and reliable protection, making them ideal for DC circuits such as those found in solar installations, batteries, and inverters.
2. Key Principles Behind Fuse Sizing
The recommended fuse size (Amps) depends on the normal operating current of your load, the duty cycle (continuous or intermittent), and any temporary current surges such as motor inrush. Fuses are not meant to operate right at their rated current indefinitely — most are designed to carry about 75–80% of their rating continuously. Therefore, sizing a fuse properly involves understanding continuous load factors, inrush currents, and derating rules.
3. Continuous vs Intermittent Loads
According to the National Electrical Code (NEC)125% of the load current. For example, if a solar inverter draws 10A continuously, a fuse of at least 12.5A is needed — rounded up to the next standard size, such as 15A.
Intermittent or short-duration loads — such as pumps or appliances that cycle on and off — can typically use a fuse rated close to 100% of the normal current. However, if the load has a motor or transformer, an additional allowance must be made for inrush current.
4. Inrush Current and Time-Delay Fuses
Many devices, especially those with motors, compressors, or switch-mode power supplies, experience a short surge of current when first powered on. This spike can be several times the running current, lasting milliseconds to seconds. To prevent nuisance fuse blowing during startup, engineers use slow-blow (time-delay) fuses that tolerate brief surges without opening the circuit.
For purely resistive loads (like lighting, heating, or simple electronics), fast-acting fuses are preferred. These respond almost instantly to overcurrent, providing tight protection for sensitive equipment and cables.
5. Common Fuse Multipliers Used in Design
- 1.0× – Intermittent or low-duty loads (no continuous or surge factor)
- 1.25× – Continuous loads (NEC 125% rule)
- 1.5× to 2× – High inrush or inductive loads (motors, compressors)
- Derating: optional user reduction of 10–25% for added safety margin
The calculator above automatically combines these multipliers to estimate a realistic fuse size for both AC and DC circuits.
6. Example Fuse Sizing Calculation
Suppose you have a DC circuit drawing 10A at 48V continuously, with a 25% inrush allowance. Applying the NEC 125% continuous factor:
Working current = 10 A × 1.25 (inrush) × 1.25 (continuous) = 15.6 A
Rounded up to the next standard fuse value, you would choose a 20A fuse. Because there is a moderate inrush factor, a slow-blow fuse is recommended.
7. Fuse Derating for Environment and Safety
Fuse performance is affected by ambient temperature, mounting method, and the type of holder used. High temperatures reduce the current-carrying capability of a fuse because the element is already closer to its melting point. As a general guide:
- Reduce fuse rating by 10–15% when ambient temperature exceeds 40°C.
- Derate further (up to 25%) if fuses are grouped closely together with limited airflow.
- Always confirm the manufacturer’s derating curve for precise correction factors.
The User Derating (%) field in this calculator allows you to account for these conditions easily.
8. Selecting Between Fuse and Breaker

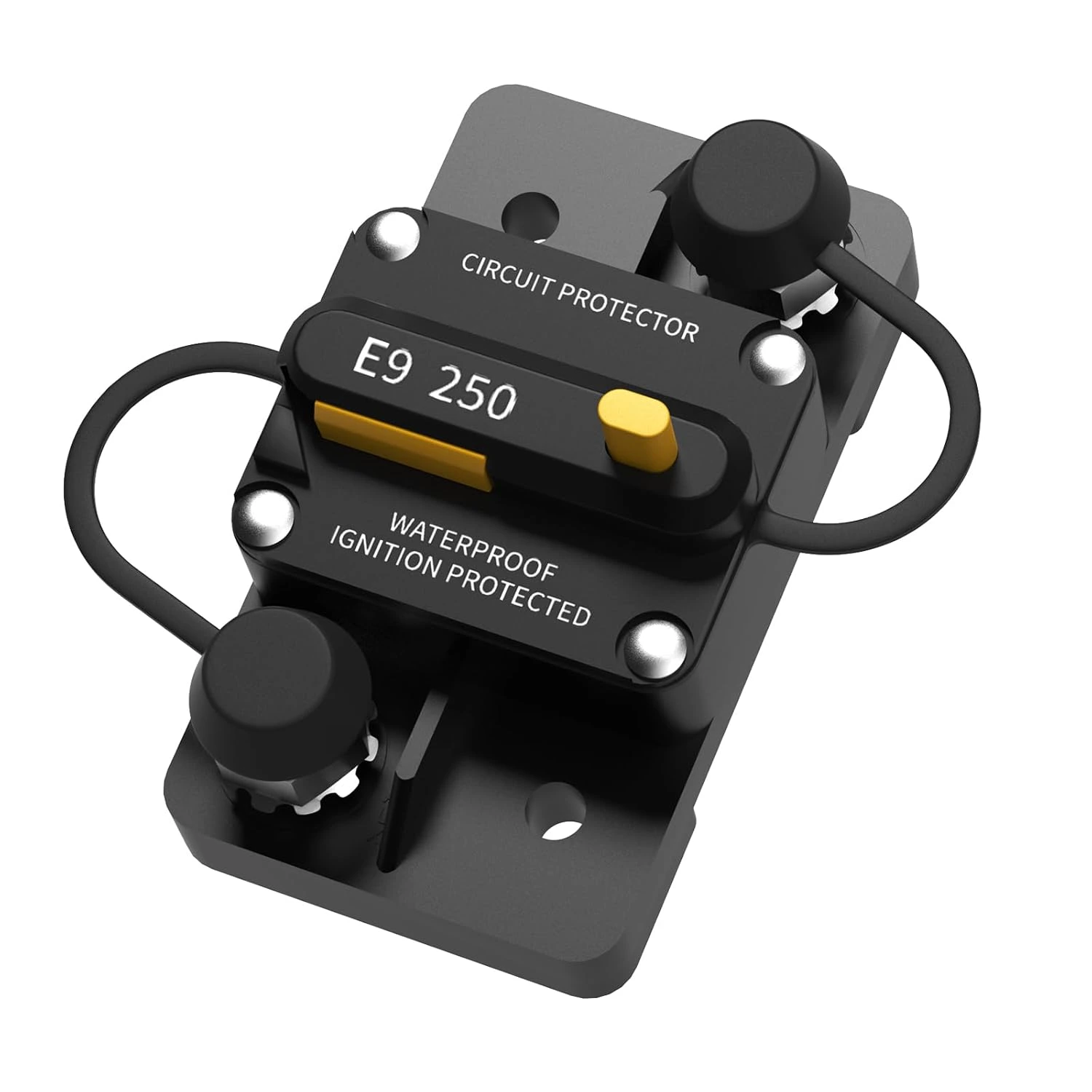

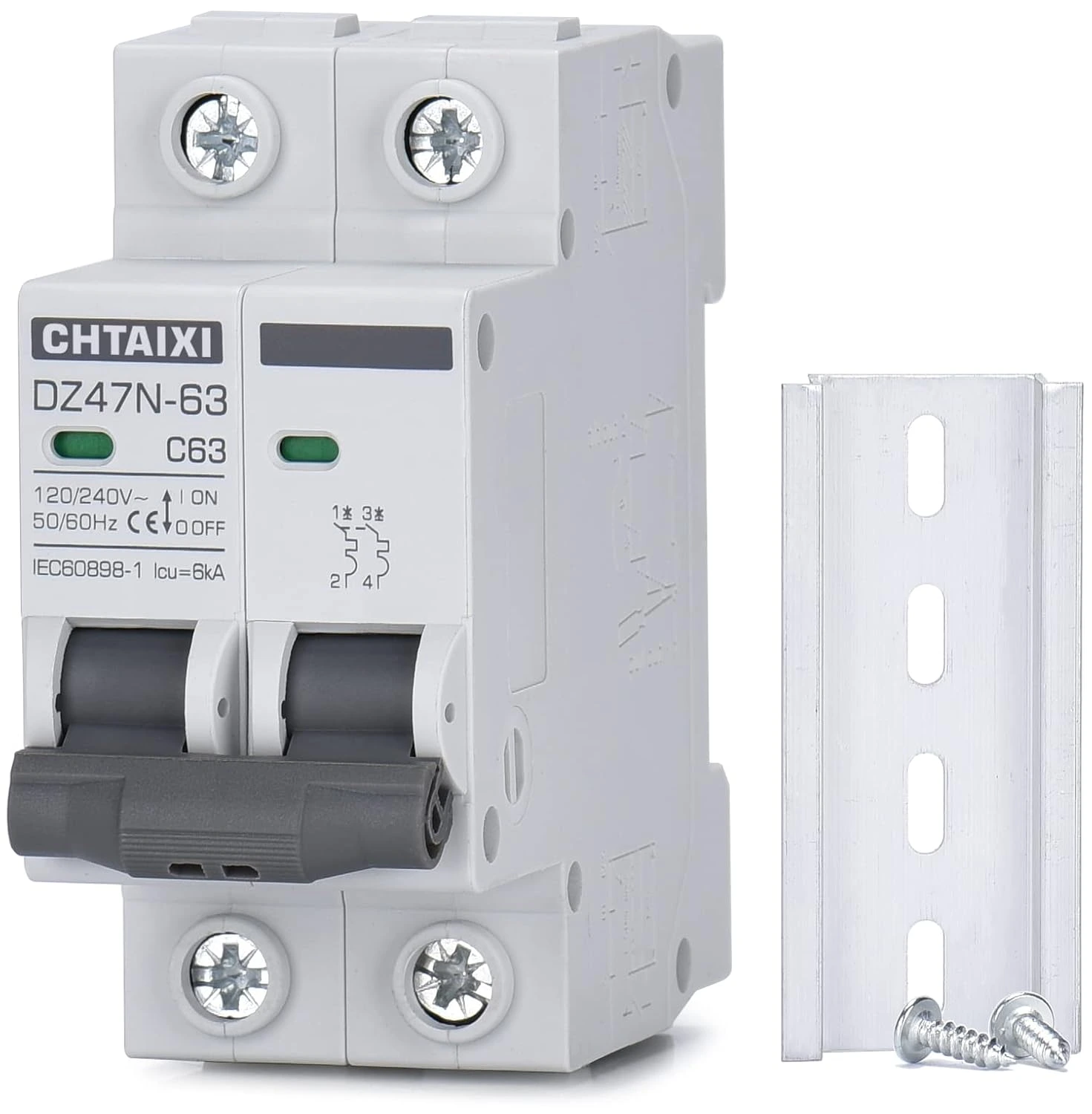

While both fuses and circuit breakers offer overcurrent protection, their response characteristics differ. Fuses operate faster and more precisely, making them ideal for DC solar arrays, charge controllers, and battery lines where arc suppression is critical. Circuit breakers are reusable and better suited for AC mains and branch circuits where manual reset and switching functions are needed.
In many well-designed solar systems, a combination is used: fuses on the DC side (panel strings, battery links) and breakers on the AC output.
9. Fuse Coordination and Conductor Protection
A properly sized fuse not only protects the equipment but also safeguards the conductor (wire) from overheating. The fuse rating should always be less than or equal to the ampacity of the wire. For example:
- AWG 14 (≈1.6 mm²) — 15A max
- AWG 12 (≈2.5 mm²) — 20A max
- AWG 10 (≈4 mm²) — 30A max
- AWG 8 (≈6 mm²) — 40A max
- AWG 6 (≈10 mm²) — 55A max
The calculator provides a quick conductor suggestion based on the computed working current. For final design, always verify the wire’s ampacity and installation conditions (ambient temperature, insulation type, conduit fill, etc.).
10. Common Mistakes to Avoid
- Choosing a fuse equal to the load current — it may blow during normal operation.
- Using a fast-blow fuse on motor or compressor loads — leads to nuisance trips.
- Oversizing a fuse far beyond wire capacity — risks fire or insulation damage.
- Ignoring ambient temperature and voltage rating — may cause premature failure.
Remember that a fuse’s voltage rating must meet or exceed the system voltage (e.g., 48VDC, 230VAC). A fuse rated too low for system voltage might arc internally when blown.
11. Summary and Best Practices
Proper fuse sizing ensures that your solar and electrical systems remain safe, efficient, and code-compliant. As a quick reference:
- Apply 125% for continuous loads
- Add 25–100% if the load has inrush or startup surges
- Derate 10–25% for temperature or design conservatism
- Round up to the nearest standard fuse rating
- Confirm wire size ≥ fuse ampacity
Always verify the calculated result with manufacturer data and local electrical standards before installation.
12. Final Thoughts
Whether you’re designing a small off-grid solar setup or a complex hybrid system, using the correct fuse size can prevent catastrophic damage and extend equipment life. This calculator provides a fast, practical estimate, incorporating the same logic used by experienced electrical designers. Pair it with SolarMathLab’s other tools — like Breaker Sizing, Cable Size, and Inverter Selection — to build a complete and safe power system.
Disclaimer: This tool and article are for educational and estimation purposes only. Always consult a qualified electrician or engineer and adhere to local electrical codes before finalizing any fuse or conductor selection.
